Industrial 868mhz Lora Modem Rf Transceiver Module For Smart Home IoT Solution

Parameters of Lora Modem

• Introduction​ of Lora Modem

ZHC0561 is a low-frequency half-duplex LoRa data transmission terminal that supports point-to-point communication protocol. It has 4 channels of DI detection, 2 channels of DO output, local logic and logic settings between devices, and supports AES communication encryption. The use of serial ports for sending and receiving reduces the threshold for wireless applications and can realize data transfer from serial ports to LoRa. LoRa has the advantages of concentrated power density and strong anti-interference ability. The communication distance of this product can reach 8000M (open field, antenna gain 3dBi, height greater than 2m, 0.268K air rate, default channel).

Product model: ZHC0561, the network is LoRa, provides 1RS485/4DI/2DO interface.
Features: Support AES communication encryption, communication distance up to 8km, concentrated power density, and strong anti-interference ability.
Protocol: Support Modbusr RTU/TCP adaptive.
Industrial grade quality: AES data encryption, can work normally at -20℃~+60℃, galvanized steel plate material.
Application: data oilfield monitoring, smart agricultural solutions, and can cooperate with 4G to realize remote oilfield monitoring.

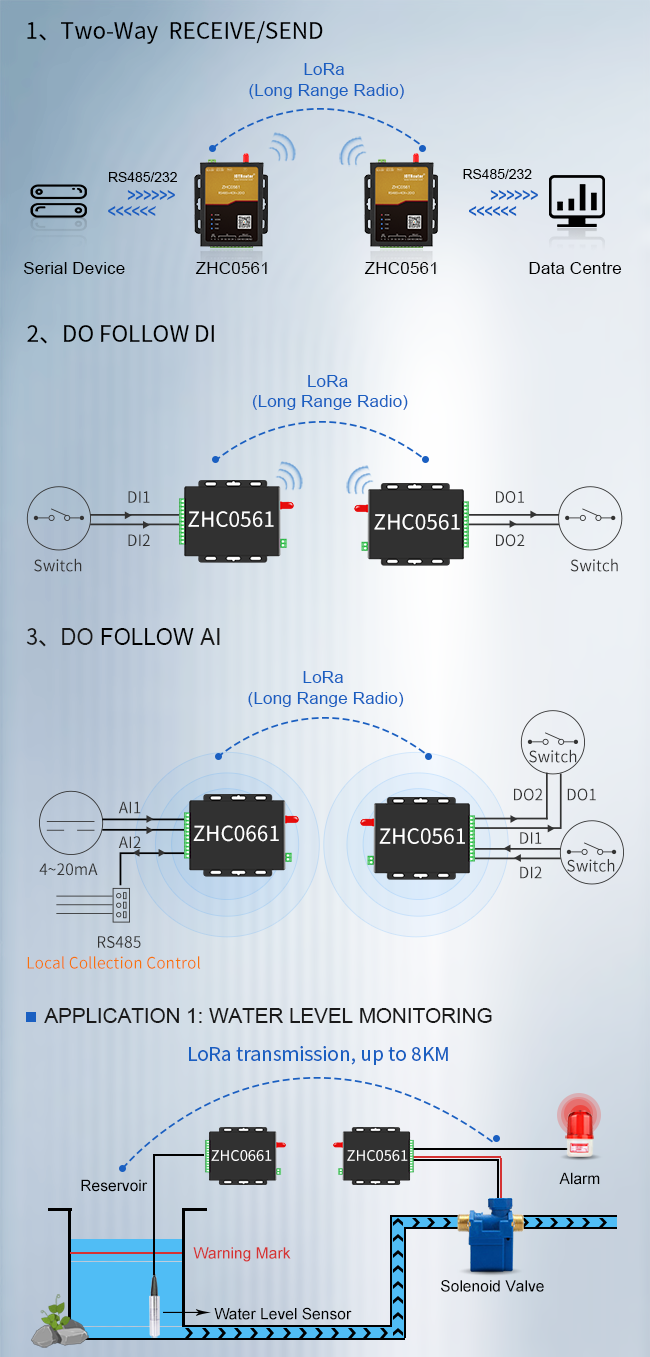

• Function​ of Lora Modem

ZHC0561 has 4 switch alarm inputs, which can be connected to infrared alarm switches, proximity switches, access switches and other equipment. ZHC0561 is divided into dry node and wet node input circuit.
Note: The device defaults to the dry node version. If you need a wet node, please consult customer service or leave a message.
LoRa RTU ZHC0561 Well overcome many shortcomings happened in similar products,with full consideration on tough environment.Validated by many vital projects with stability and reliance features. ZHC0561 can collect temp readings with preset interval and send out via another LoRa modem, Widely used in temperature monitoring applications with our gateway products.

Application of Lora Modem

ZHC0561 can be applied to the agricultural Internet of Things. By detecting and controlling physical parameters such as temperature, humidity, PH value, light intensity, soil nutrients, CO2 concentration and other physical parameters in the control environment, the best conditions for crop growth can be obtained to increase production, improve quality, and regulate growth cycles. , The purpose of improving economic efficiency.

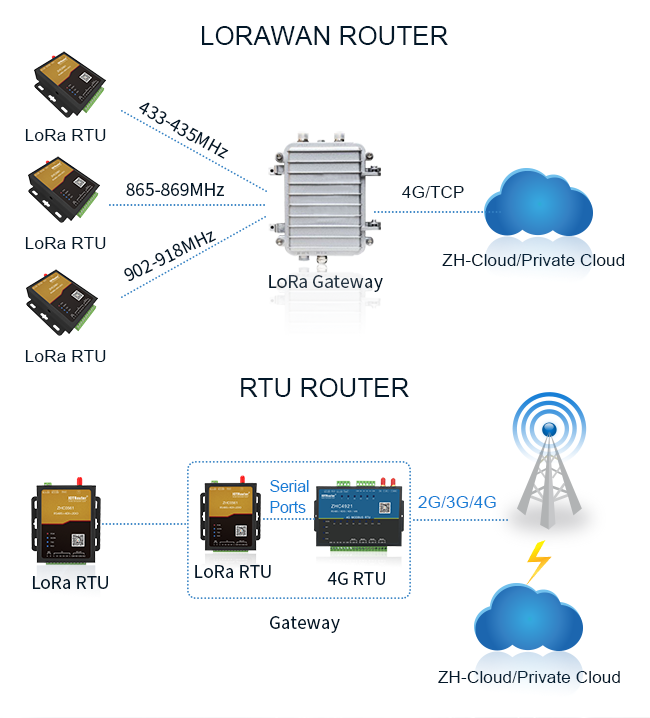

The sensor is responsible for collecting soil temperature and humidity, ph value, light, CO2 concentration and other information. After the collection is completed, the ZHC0561 will send the environmental parameters to the gateway, and the gateway will transmit it to the remote or local server to manage the farmland environment.
