    8 Channel Relay Modbus Remote Io Module Industrial Converter Acquisition Module

    Ask Lasest Price
    Brand Name : IOTROUTER
    Model Number : ZHT0800
    Certification : CE FCC RoHs
    Price : USD22~28/PCS
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 50000PCS/MONTH
    Delivery Time : 1 WEEK
    • Product Details
    • Company Profile

    8 Channel Relay Modbus Remote Io Module Industrial Converter Acquisition Module

    8 Channel Relay Output Remote IO Module Industrial Converter Acquisition Module


    Parameters of ZHT0800


    DATASHEET
    1
    Module Size
    115*90.5*41mm
    2
    Acquisition Channel
    8 Channel relay output
    3
    Serial Interface
    RS485
    4
    Supply Voltage
    5 ~ 36V DC
    5
    Working Current
    12V/50mA
    6
    Operating Temperature
    -40℃~+65℃

    • Introduction​ of ZHT0800

    ZHT0800 contains a 485 interface, multiple devices can be cascaded through the 485 bus. Each module can set the address, the address ranges from 1-30. The maximum communication distance of the 485 bus is 1200 meters, and the communication distance can be increased through the 485 relay according to the actual application environment.


    Relay Wiring Instructions
    The ZHT0800 output adopts a single normally open relay, and the user can control the on and off of the peripheral circuit by controlling the relay to open/close.

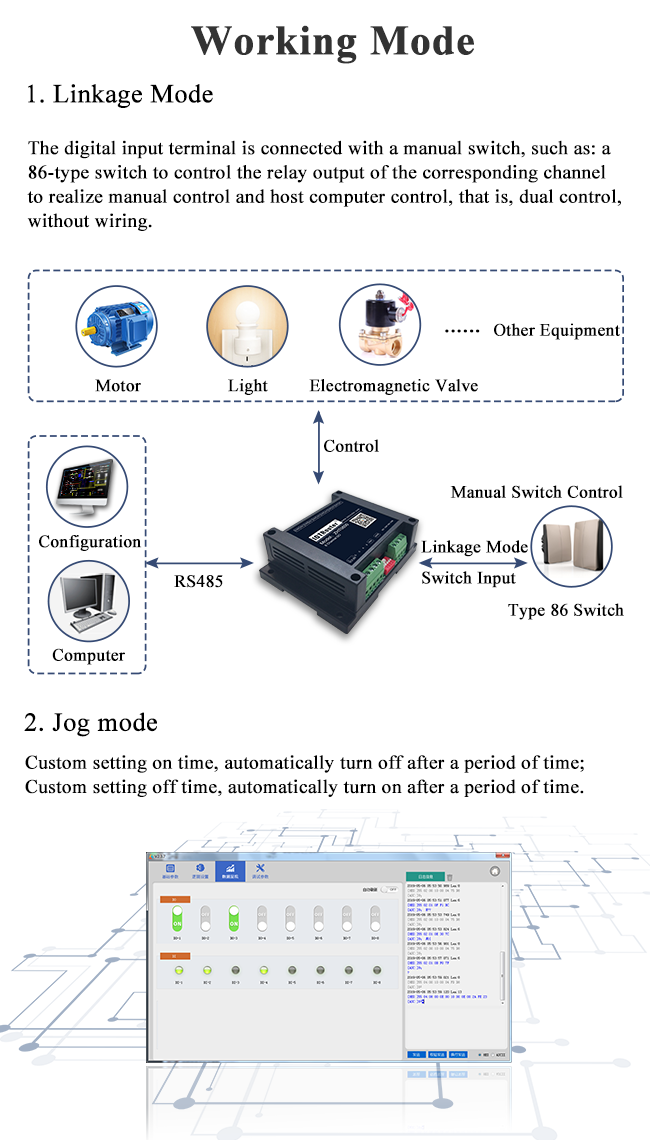

    Working Mode of ZHT0800


    1. Linkage Mode

    The digital input terminal is connected with a manual switch, such as: a 86-type switch to control the relay output of the corresponding channel to realize manual control and host computer control, that is, dual control, without wiring.

    2.Jog Mode

    Custom setting on time, automatically turn off after a period of time.

    Custom setting off time, automatically turn on after a period of time.



    ZHT0800
    RS485 Modbus
    8 Channel Relay Output
    Standard Modbus Protocol
