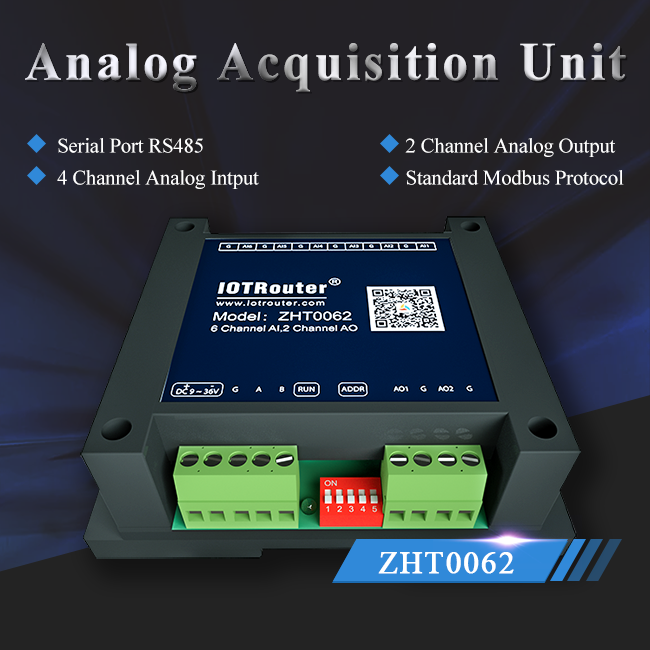

Analog Acquisition Remote IO Module RS485 to 4-20mA Modbus RTU for PLC

Parameters of ZHT0062

• Introduction​ of ZHT0062

ZHT0062 is a serial port control module, provide 6 channel AI ports, 2 channel AO ports and a RS485 interface, support the standard Modbus RTU protocol, support 4 ~ 20 ma analog input/output, support 12 sampling accuracy. we provide comprehensive technical support, and can be widely used in application scenarios such as warehousing and logistics, weather monitoring, smart energy, and aquaculture.

Features:

4-20mA analog control
6 analog inputs
2 analog outputs
Support standard Modbus RTU protocol
Support computer software viewing and debugging
Voluntarily report
Interval reporting
Automatic range conversion
Logic follow function
Interval reporting function

• Function​ of ZHT0062

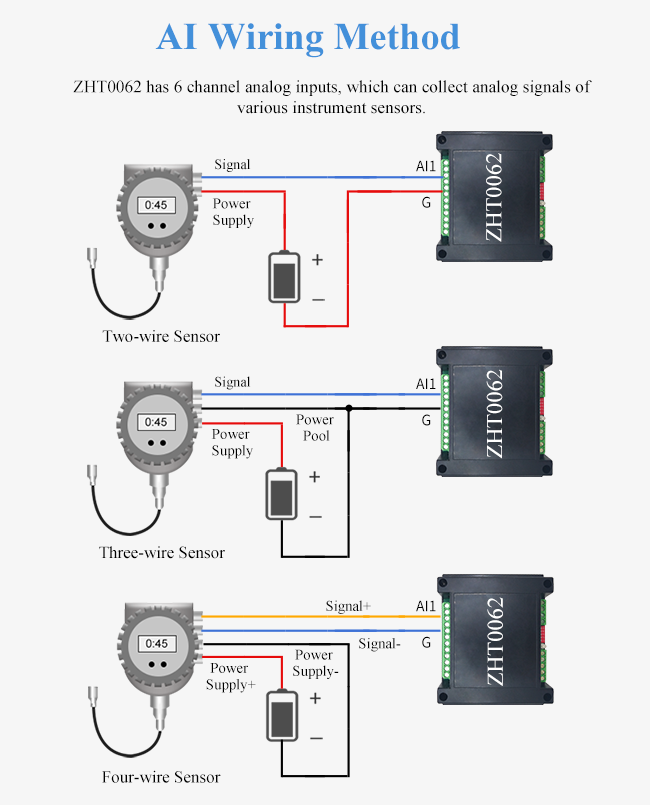

ZHT0062 has 6 channel analog inputs, which can collect analog signals of various instrument sensors.

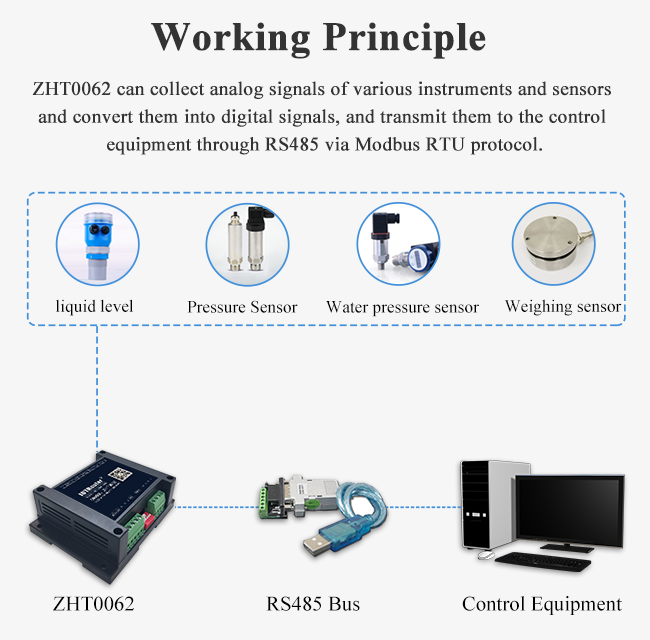

ZHT0062 can collect analog signals of various instruments and sensors and convert them into digital signals, and transmit them to the control equipment through RS485 via Modbus RTU protocol.
