Data Acquisition Remote IO Module DAQ Anolog Output IOT Transceiver

Parameters of ZHT0062

• Introduction​ of ZHT0062

ZHT0062 is a serial port control module, provide 6 channel AI ports, 2 channel AO ports and a RS485 interface, support the standard Modbus RTU protocol, support 4 ~ 20 ma analog input/output, support 12 sampling accuracy. we provide comprehensive technical support, and can be widely used in application scenarios such as warehousing and logistics, weather monitoring, smart energy, and aquaculture.

Active reporting function

Function introduction: Periodically report AI port status. The reporting period can be set by yourself. (Range 0~65535 Unit: S)
Note: Active reporting is disabled by default.
Setting method: Select to open the active report, and the configuration will take effect after the configuration is successfully saved.

• Function​ of ZHT0062

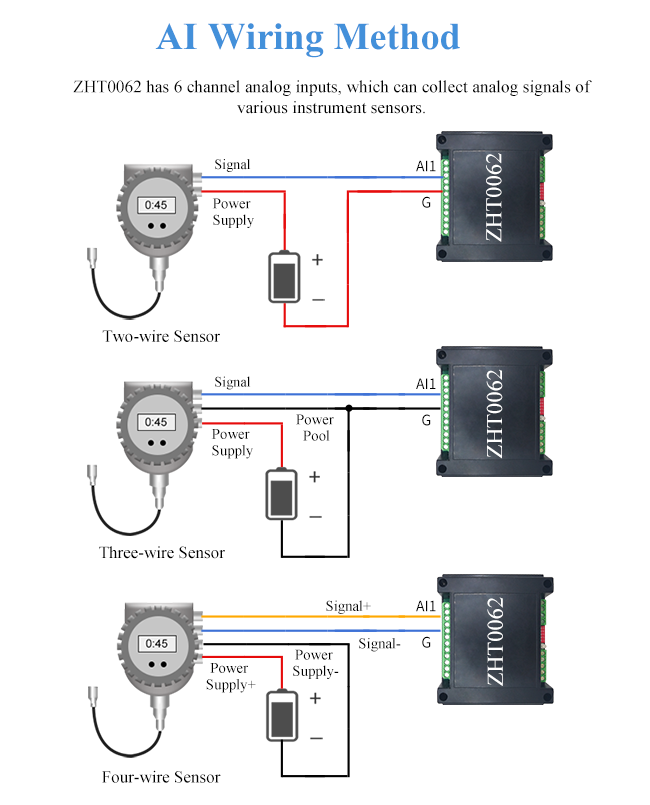

ZHT0062 has 6 channel analog inputs, which can collect analog signals of various instrument sensors.
ZHT0062 can collect analog signals of various instruments and sensors and convert them into digital signals, and transmit them to the control equipment through RS485 via Modbus RTU protocol.
