    Modbus RTU Din Rail Modules Serial To Lte Remote Terminal Unit For Data Acquisition

    Ask Lasest Price
    Brand Name : IOTROUTER
    Model Number : ZHC401C
    Certification : CE/ROHS/FCC
    Price : USD35~39/PCS
    Payment Terms : L/C, , T/T, Western Union
    Delivery Time : 2 weeks
    Supply Ability : 50000PCS/MONTH
    • Product Details
    • Company Profile

    Modbus RTU Din Rail Modules Serial To Lte Remote Terminal Unit For Data Acquisition

    Modbus RTU DIN Rail Modem Serial To Lte Remote Terminal Unit For Data Acquisition


    Description of DIN Rail Modem


    ZHC401C is a network IO product that supports 1-way RS485 pass-through and is compatible with Modbus RTU/TCP protocol. With "remote control" as the core function, users can easily and quickly integrate into their own systems to achieve remote and local control based on LTE and RS485.


    ZHC401C Serial Port
    Number of ports
    RS485*1
    Standard
    RS485: A, B
    Baud rate
    600~921600bps
    Data bit
    8, 9
    Stop bit
    0.5, 1, 1.5, 2
    Check Bit
    NONE EVEN ODD
    Power Supply
    Voltage
    9~36V
    Current
    60mA(aver) @9V
    30mA(aver) @36V
    EMC
    ESD
    IEC61000-4-2, Level 4
    Surge
    IEC61000-4-2, Level 3
    Group pulse
    IEC61000-4-2, Level 3

    Product model: ZHC401C, the network is 4G full Netcom, providing RS485 interface
    Featured functions: DIN-rail installation, scheduled restart, one-to-one/many-to-many networking, active collection and reporting, cloud networking, and cloud transparent transmission.

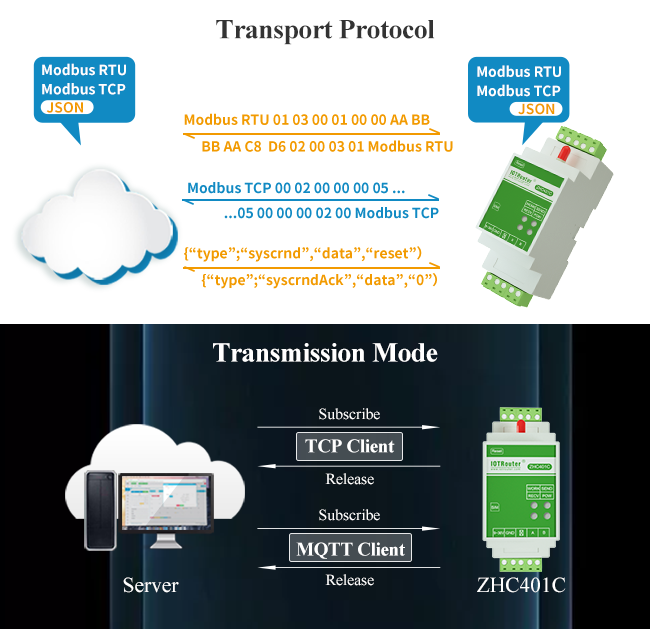

    Protocol: Support MQTT, JSON, Modbusr RTU/TCP adaptive.
    Industrial grade quality: dual watchdogs, PC+ABS material, V0 flame retardant, anti-static, imitating surge
    Application: Pollution source detection, atmospheric environment detection, noise detection, dust detection, etc.


    Application of DIN Rail Modem


    Intelligent Irrigation System


    Traditional lawn irrigation is basically based on artificial irrigation. This irrigation method can only change the soil moisture and has a small impact on the microclimate of the growth of green space plants. The irrigation quota is large, it is inconvenient to implement timely and appropriate irrigation, and the water utilization rate is low. The advanced water-saving irrigation system has developed from the traditional full irrigation to the inadequate irrigation, monitoring and forecasting the water used in the irrigation area, and implementing dynamic management.
