    MQTT RS485 PLC Controller Programmable 4G 5G Gateway with GPS GSM Antenna

    Ask Lasest Price
    Brand Name : IOTROUTER
    Model Number : EG8100
    Certification : RoHS, CE FCC RoHS
    Price : USD139~159/PCS
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 50000PCS/MONTH
    Delivery Time : 1 WEEK
    MOQ : 10PCS
    • Product Details
    • Company Profile

    MQTT RS485 PLC Controller Programmable 4G 5G Gateway with GPS GSM Antenna

    MQTT RS485 PLC Controller Programmable 4G 5G Gateway with GPS GSM Antenna


    • Introduction​ of PLC Gateway

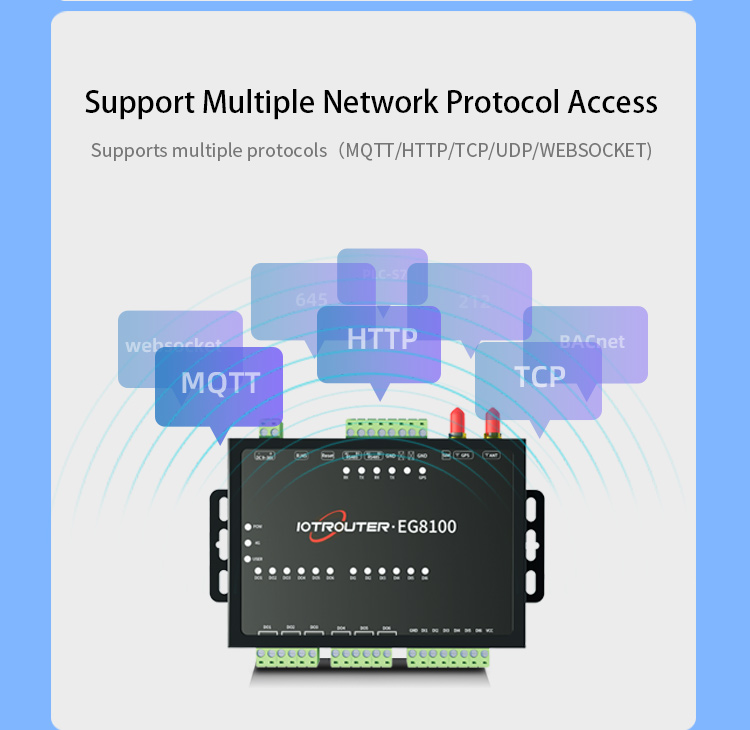

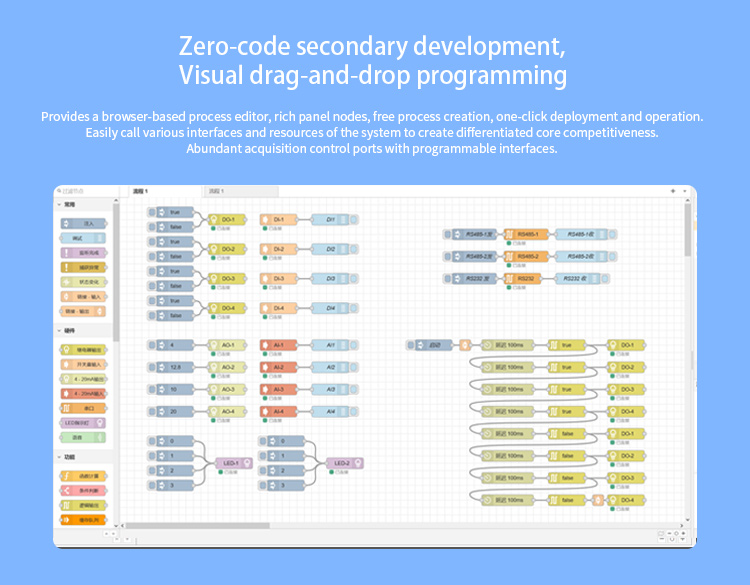

    EG8100 series products are edge computing gateways launched by IOTRouter Chengdu. With its rich hardware interfaces, drag-and-drop programming method, Zero Code design concept, convenient remote management and other characteristics, It can quickly, flexibly, accurately and efficiently respond to various IoT industry needs. Edge8000 abstracts complex hardware interfaces, different industrial network protocols, etc. into Nodesone by one. Users can use these Nodes flexibly to replace the traditional complex and inefficient coding process by dragging and connecting. Really let customers focus on business logic and quickly create their own gateway equipment. The mission of Edge8000 is to continuously develop new Nodes to serve industry customers to adapt to the fragmentation of IoT industry needs.


    Parameters of PLC Gateway


    Serial Port
    DO
    Number of ports
    RS485*2
    Number of interfaces
    6 Relay output
    Standard
    RS485: A, B
    Standard
    DO*6, COM*2
    Baud rate
    600~921600bps
    Mechanical durability
    10^7
    Data bit
    8, 9
    Electrical durability
    10^5
    Stop bit
    0.5, 1, 1.5, 2
    Capacity
    5A 250VAC 30VDC
    Check Bit
    NONE EVEN ODD
    DI
    Power Supply
    Number of interfaces
    6 Relay input
    Voltage
    9~36V
    Standard
    DI*6, COM*2
    Current
    60mA(aver) @9V
    30mA(aver) @36V
    Detection range (wet node)
    5~50V->High0~2V->Low


    • Functions of PLC Gateway
