Brand Name : | IOTROUTER |
Model Number : | ZHC4012 |
Certification : | CE FCC RoHs |
Price : | USD55~58/PCS |
Payment Terms : | L/C, T/T, Western Union |
Supply Ability : | 50000PCS/MONTH |
Delivery Time : | 1 WEEK |
OEM Automatic Acquisition 4G DTU ANTI SURGE Lte Modem With Double
Guard Dog
Parameters of 4G DTU ZHC4012
Serial Port | ||
Standard | RS485 (A / B) | |
Baud Rate | 600~921600 bps | |
Data Bit | 8, 9 | |
Stop Bit | 0.5, 1, 1.5, 2 | |
Parity Bit | NONE EVEN ODD | |
Mechanical Structure | ||
SIZE | 93*69*25mm(L*W*H) | |
SHELL | Galvanized Steel Sheet | |
Work TEMP. | -40℃~85℃ | |
Storage TEMP. | -40℃~125℃ | |
Work Humidity | 5~95% | |
Storage Humidity | 1~95% | |
Equipment Port | ||
SIM Card | 1.8V/3V | |
LTE Antenna | SMA |
Introduction of 4G DTU ZHC4012
ZHC4012 is a product developed to realize the mutual data
transmission between serial device and network server through the
operator's network. By simply setting via upper computer, you can
easily use this product to realize the two-way data transparent
transmission from the serial port to the network. ZHC4012 support
standard MQTT and Modbus Protocol, which can be widely used in
power system, industrial monitoring, traffic management,
environmental monitoring, meteorology, water conservancy, coal,
petroleum, new energy and other industries.
ZHC4012 configuration software is mainly divided into 2 functional
modules
Basic parameters: Mainly set the functions related to the
interface, such as: 485 and 4G communication Socket related
parameters.
Debugging parameters: setting or viewing device ID information,
etc., network operating parameter debugging, etc., upgrade reset
restart, etc. The user can select the corresponding function for
setting operation according to actual needs.
Function of 4G DTU ZHC4012
Features:
Support 4G high-speed access
Support serial heartbeat package
Support setting the direction of active data reporting
Support TCP_Client, HTTP_Client
Working mode: master mode, slave mode, master mode supports RS485
cascading multiple Modbus devices
Support cloud forwarding, cloud networking
Support local upgrade and remote upgrade
Support hardware watchdog
Support domain name address resolution
Support setting APN
Support signal quality query
Support SIM card number query
Support heartbeat package
Support any format of registration package to ensure the legitimacy
and uniqueness of the device identity
ZHC4012 | |
RS485 Modbus | √ |
RS485 Automatic Acquisition | √ |

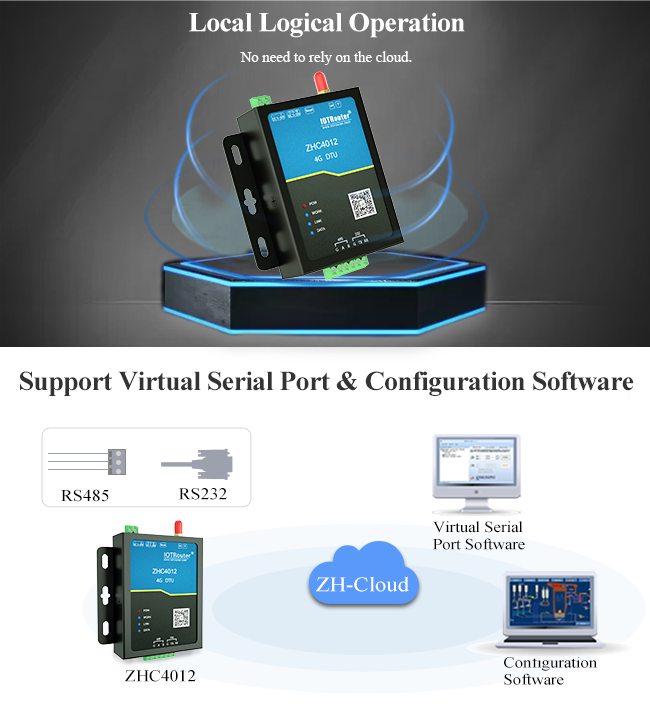

Virtual Serial Port | √ |
Connfiguration Software | √ |
Configuration Software Docking | √ |
Modbus RTU/TCP MQTT | √ |
![]() |
