Modbus TCP IO Module 4G DTU Wireless Transmitter Receiver For IOT
Monitoring
Parameters of 4G DTU ZHC4012
| Serial Port |
| Standard | RS485 (A / B) |
| Baud Rate | 600~921600 bps |
| Data Bit | 8, 9 |
| Stop Bit | 0.5, 1, 1.5, 2 |
| Parity Bit | NONE EVEN ODD |
| Mechanical Structure |
| SIZE | 93*69*25mm(L*W*H) |
| SHELL | Galvanized Steel Sheet |
| Work TEMP. | -40℃~85℃ |
| Storage TEMP. | -40℃~125℃ |
| Work Humidity | 5~95% |
| Storage Humidity | 1~95% |
| Equipment Port |
| SIM Card | 1.8V/3V |
| LTE Antenna | SMA |
Introduction of 4G DTU ZHC4012
ZHC4012 is a product developed to realize the mutual data
transmission between serial device and network server through the
operator's network. By simply setting via upper computer, you can
easily use this product to realize the two-way data transparent
transmission from the serial port to the network. ZHC4012 support
standard MQTT and Modbus Protocol, which can be widely used in
power system, industrial monitoring, traffic management,
environmental monitoring, meteorology, water conservancy, coal,
petroleum, new energy and other industries.
Function of 4G DTU ZHC4012
Antenna: MAIN (LTE network antenna).
SIM: Press the yellow dot on the side of the SIM card slot, pop out
the card tray, and insert the SIM card.
RS485: RS485 interface.
DC5~30V (terminals): DC5~30V input.
RESET: restore factory button
DC5~30V (DC power socket): DC5~30V input.
WORK: Equipment operating status indicator
NET: Network status indicator
DATA: Data transmission indicator
POW: Power indicator
Wiring: PC is connected to ZHC4012 via USB to RS485 tool.
Networking: Insert the SIM card before powering on the device.
Power supply: DC5~30V.
After power-on, open the corresponding serial port, you can
configure the ZHC4012 through the host computer.
Features:
Support 4G high-speed access
Support serial heartbeat package
Support setting the direction of active data reporting
Support TCP_Client, HTTP_Client
Working mode: master mode, slave mode, master mode supports RS485
cascading multiple Modbus devices
Support cloud forwarding, cloud networking
Support local upgrade and remote upgrade
Support hardware watchdog
Support domain name address resolution
Support setting APN
Support signal quality query
Support SIM card number query
Support heartbeat package
Support any format of registration package to ensure the legitimacy
and uniqueness of the device identity
| ZHC4012 |
RS485 Modbus | √ |

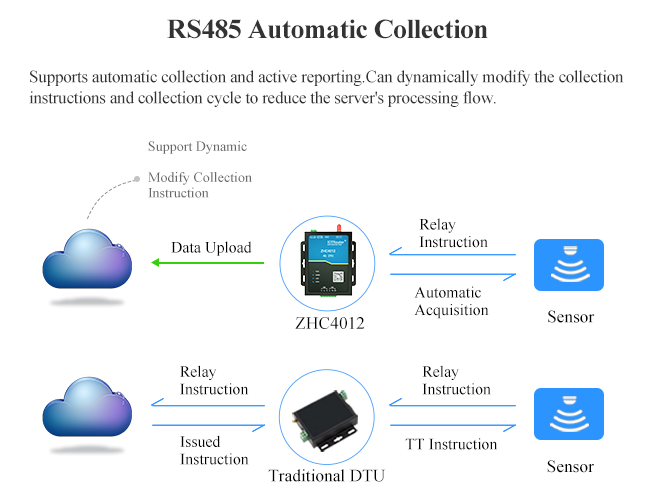

RS485 Automatic Acquisition | √ |
Virtual Serial Port | √ |
Connfiguration Software | √ |
| Configuration Software Docking | √ |
Modbus RTU/TCP MQTT | √ |
