    4G IOT Data Monitoring MQTT Modem For Greenhouse Agricultural Micro Green Growing System

    Ask Lasest Price
    Brand Name : IOTROUTER
    Model Number : ZHC492S
    Certification : CE FCC RoHs
    Price : USD69~79/PCS
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 50000PCS/MONTH
    Delivery Time : 1 WEEK
    • Product Details
    • Company Profile

    4G IOT Data Monitoring MQTT Modem For Greenhouse Agricultural Micro Green Growing System

    4G IOT Data Monitoring MQTT Modem for Greenhouse Agricultural Micro Green Growing System


    Parameters of MQTT Modem


    Serial Port
    DO
    Number of ports
    RS485*1
    Number of interfaces
    1 Relay output
    Standard
    RS485: A, B
    Standard
    NO*1, COM*1
    Baud rate
    600~921600bps
    Mechanical durability
    10^7
    Data bit
    8, 9
    Electrical durability
    10^5
    Stop bit
    0.5, 1, 1.5, 2
    Capacity
    5A 250VAC 30VDC
    Check Bit
    NONE EVEN ODD
    DI
    Power Supply
    Number of interfaces
    2 Relay input
    Voltage
    9~36V
    Standard
    DI*2, COM*1
    Current
    60mA(aver) @9V
    30mA(aver) @36V
    Detection range (wet node)
    5~50V->High0~2V->Low
    EMC
    AI
    ESD
    IEC61000-4-2, Level 4
    Number of Interfaces
    1 Analog input
    Surge
    IEC61000-4-2, Level 3
    Standard
    AI*1, G*1
    Group pulse
    IEC61000-4-2, Level 3
    Scope of test
    4~20mA

    • Introduction​ of MQTT Modem

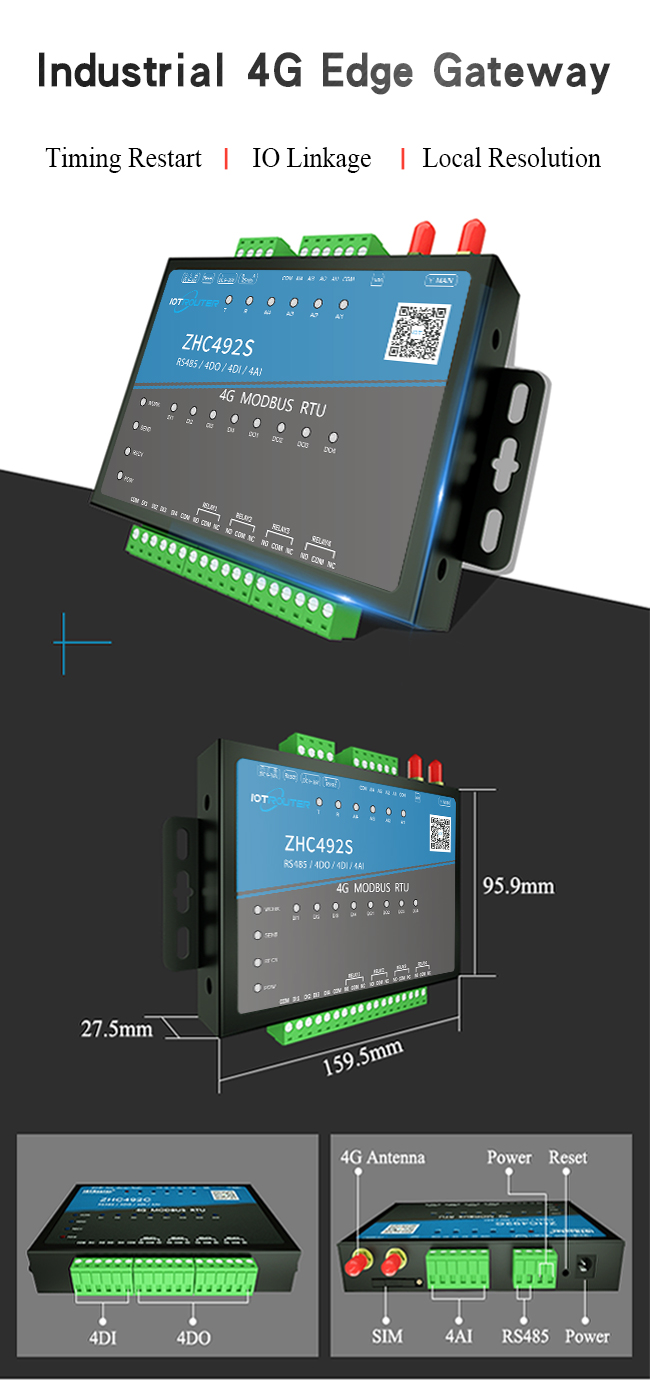

    ZHC492S support 4-channel dry (wet) node detection, 4-channel relay (COM, NO, NC) Output, 4 channel analog quantity (current 4~20mA) detection, 1 channel RS485 transparent network IO products, compatible with Modbus RTU/TCP protocol. With remote control as the core function, it is highly easy to use, users can easily and quickly integrate into their own systems to realize remote and local control based on LTE, RS485.


    • Function​ of MQTT Modem

    Client can send Modbus commands to ZHC492C through the network and serial port to read and write DO status.
    DO of ZHC492S support active reporting, restarting the holding relay status, output holding time, timing flip.

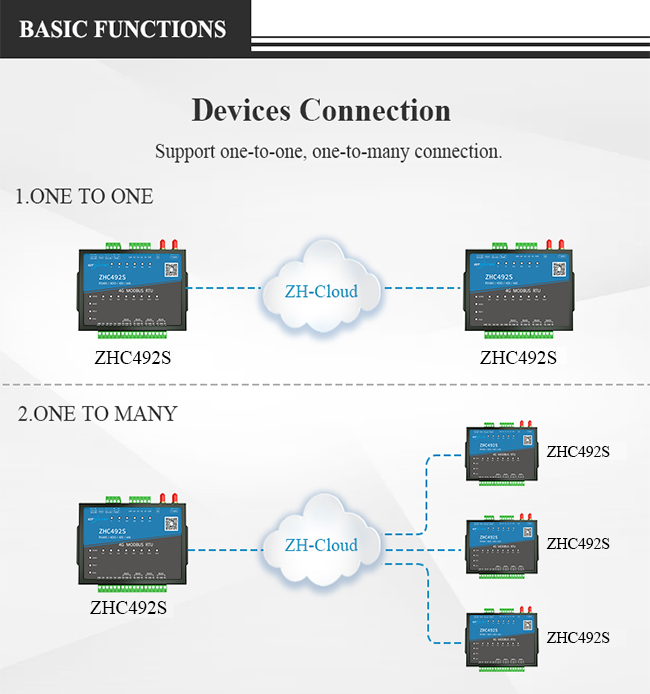

    ZHC492S can realize long-distance data transmission of one to one, one to many and many to many.

    Customers do not need to develop the server, but configure the cloud networking function of the device.





    ZHC492S

    RS485 Modbus

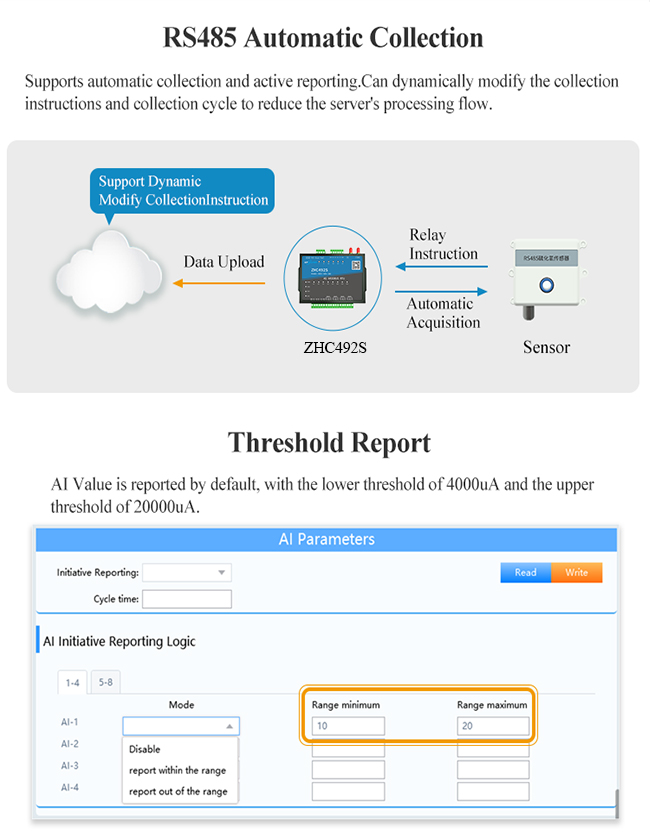

    RS485 Automatic Acquisition

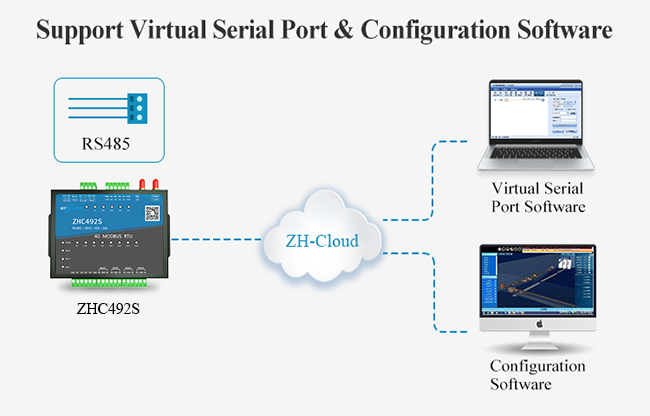

    Virtual Serial Port

    Connfiguration Software

    Threshold Report

    4 Channel Socket

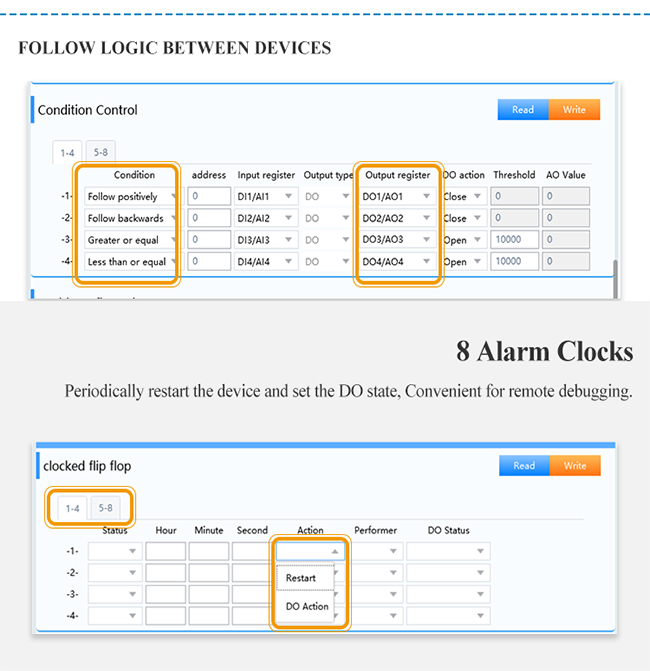

    8 Alarm Clocks

    Customize the Follow Logic of Ports

    JSON/Modbus RTU/TCP
