    0-10V Remote IO Module with RS485 Modbus 8 Channel Gateway Z-A0800 for IOT Data Acquisition

    Ask Lasest Price
    Brand Name : IOTROUTER
    Model Number : Z-A0800
    Certification : CE FCC RoHs
    Price : USD22/PCS
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 50000PCS/MONTH
    Delivery Time : 1 WEEK
    • Product Details
    • Company Profile

    0-10V Remote IO Module with RS485 Modbus 8 Channel Gateway Z-A0800 for IOT Data Acquisition

    0-10V Remote IO Module with RS485 Modbus 8 Channel Gateway Z-A0800 for IOT Data Acquisition

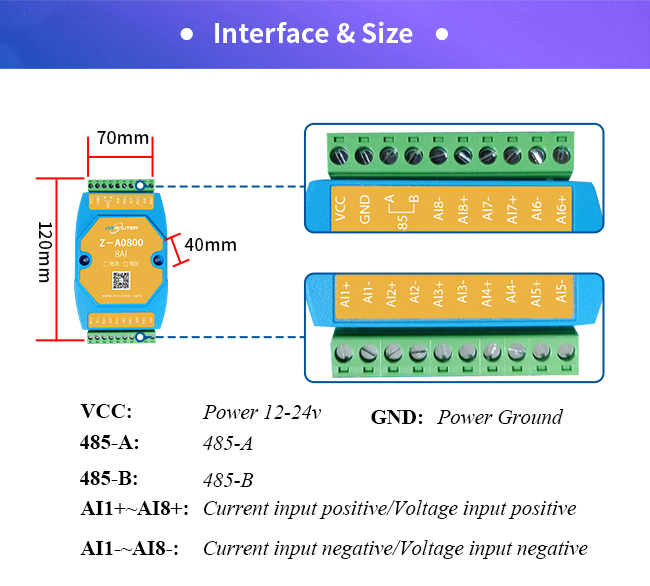

    Parameters of Remote IO Module

    DATASHEET
    1
    Module Size
    120*70*40mm
    2
    Acquisition Channel
    8 Channel Analog input(0-5V)(4-20mA)
    3
    Serial Interface
    RS485
    4
    Supply Voltage
    5 ~ 36V DC
    5
    Working Current
    12V/50mA
    6
    Operating Temperature
    -40℃~+65℃


    Features of Remote IO Module


    Standardized Protocol

    One of the most widely used standard communication protocols for eAutomation development.

    Centralized Control
    Universal remote I/O modules to operate the system via Modbus.
    Double Watchdog
    24 hours without downtime, stable operation.

      Z-A0800 is widely used in all kinds of analog digital acquisition, supports standard Modbus protocol and configuration, touch screen, PLC, upper computer software, etc., and can also realize remote data monitoring and control by connecting RTU/DTU and other equipment.

      Z-A0800 can be connected to various analog sensors, such as wind speed and wind direction sensors in small weather stations, and can also be used to collect pressure, temperature and humidity, water level changes and other numerical equipment facilities.
